Mixed-use Project
Senior housing

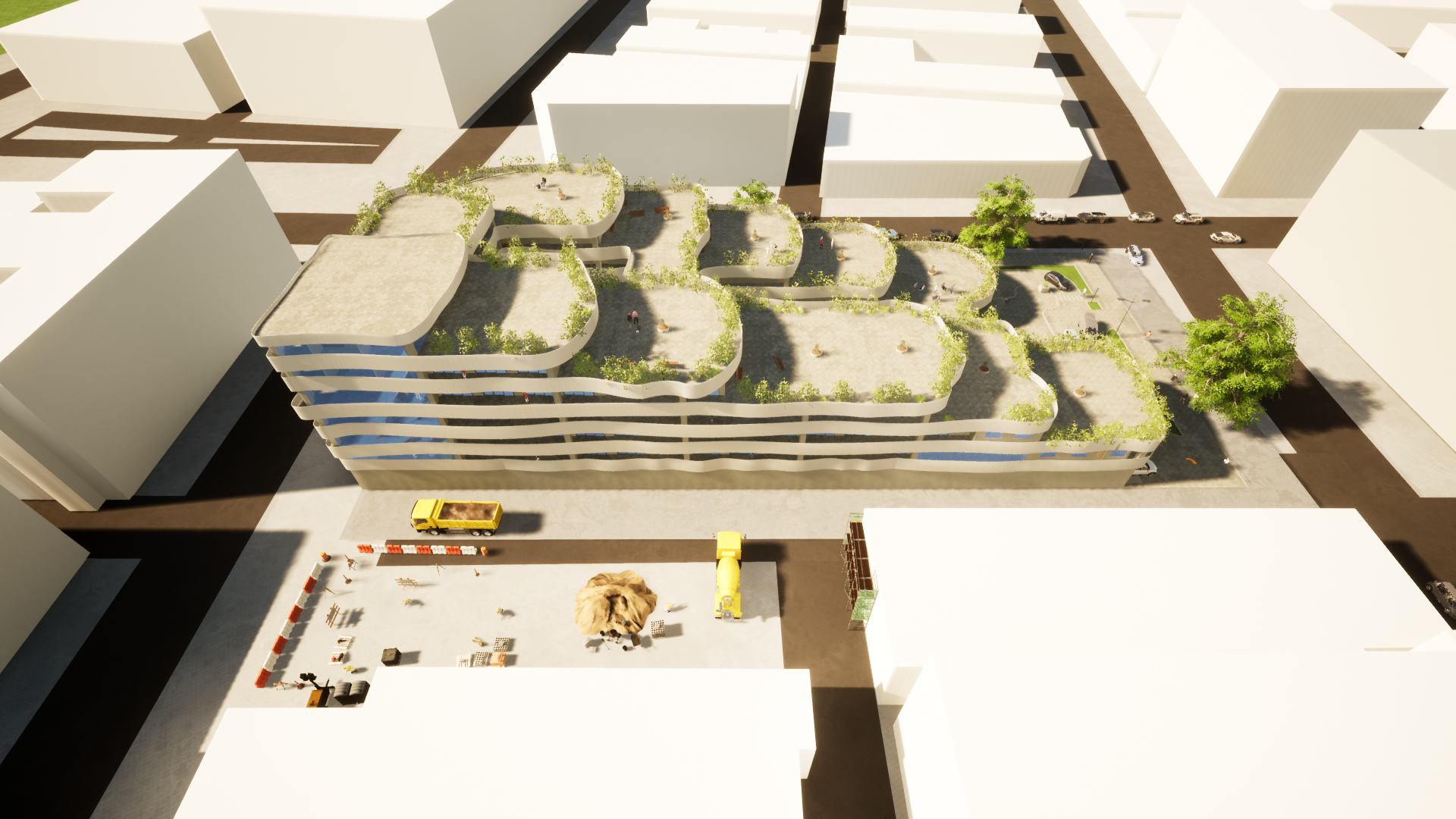

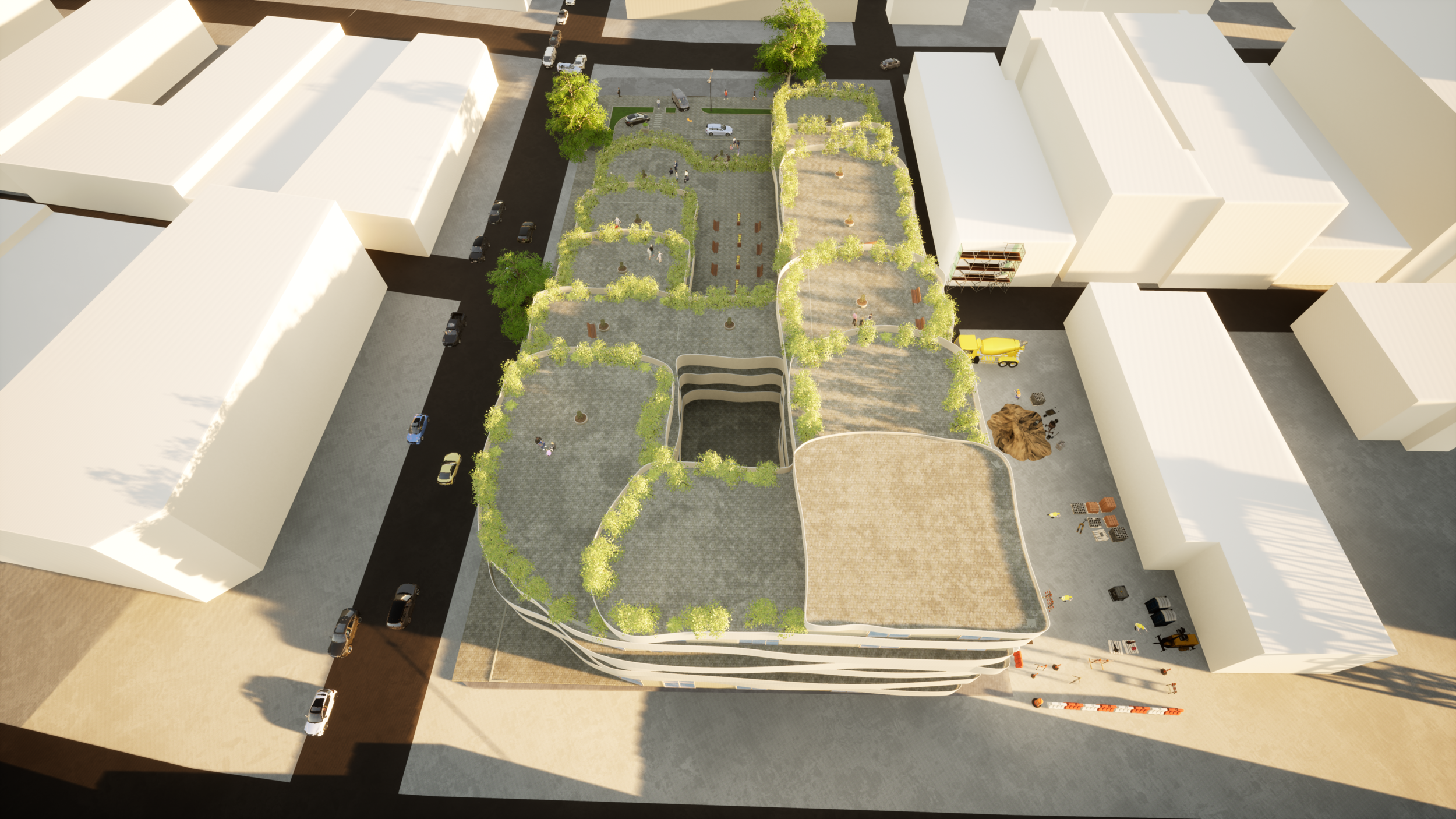

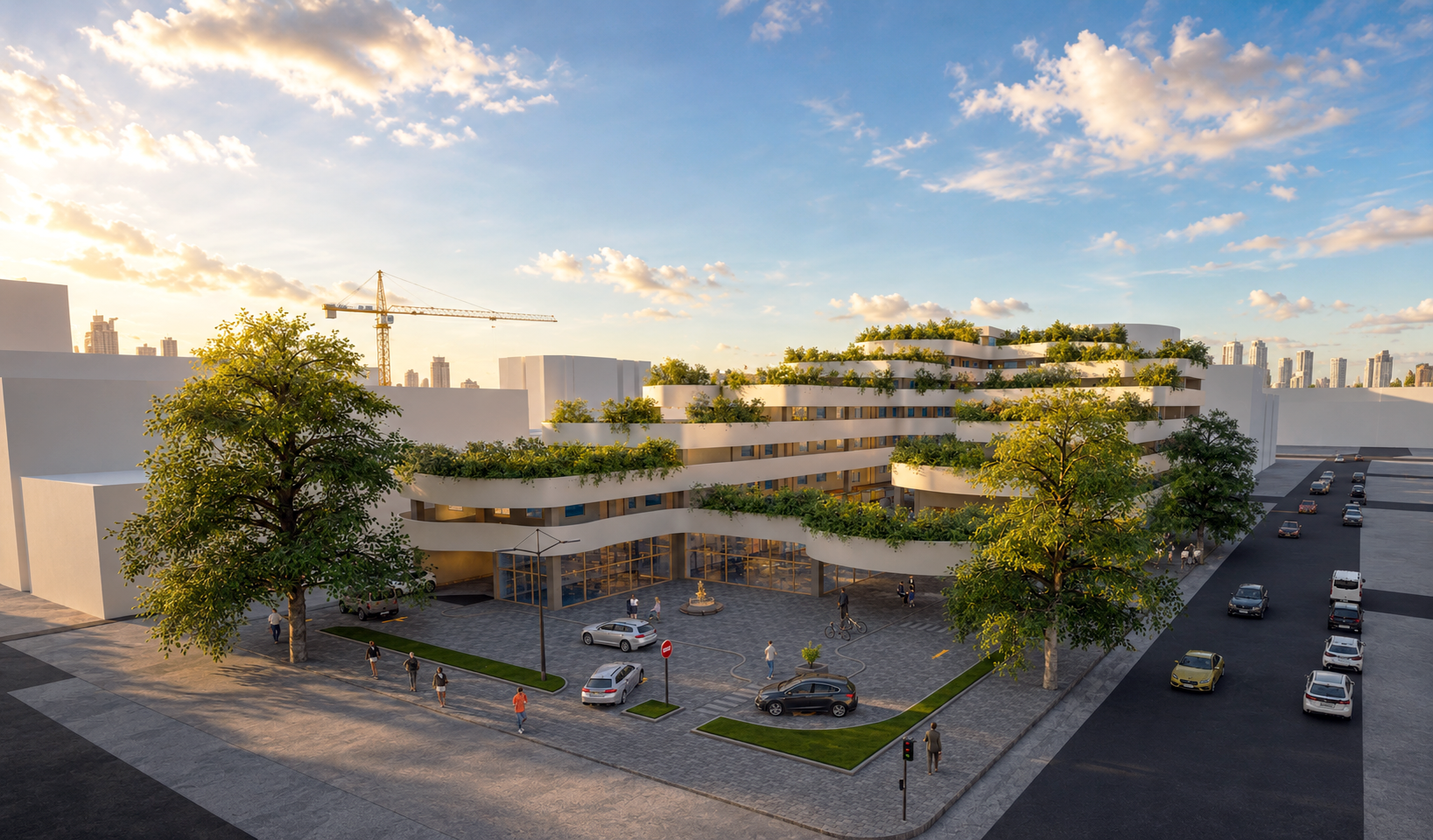

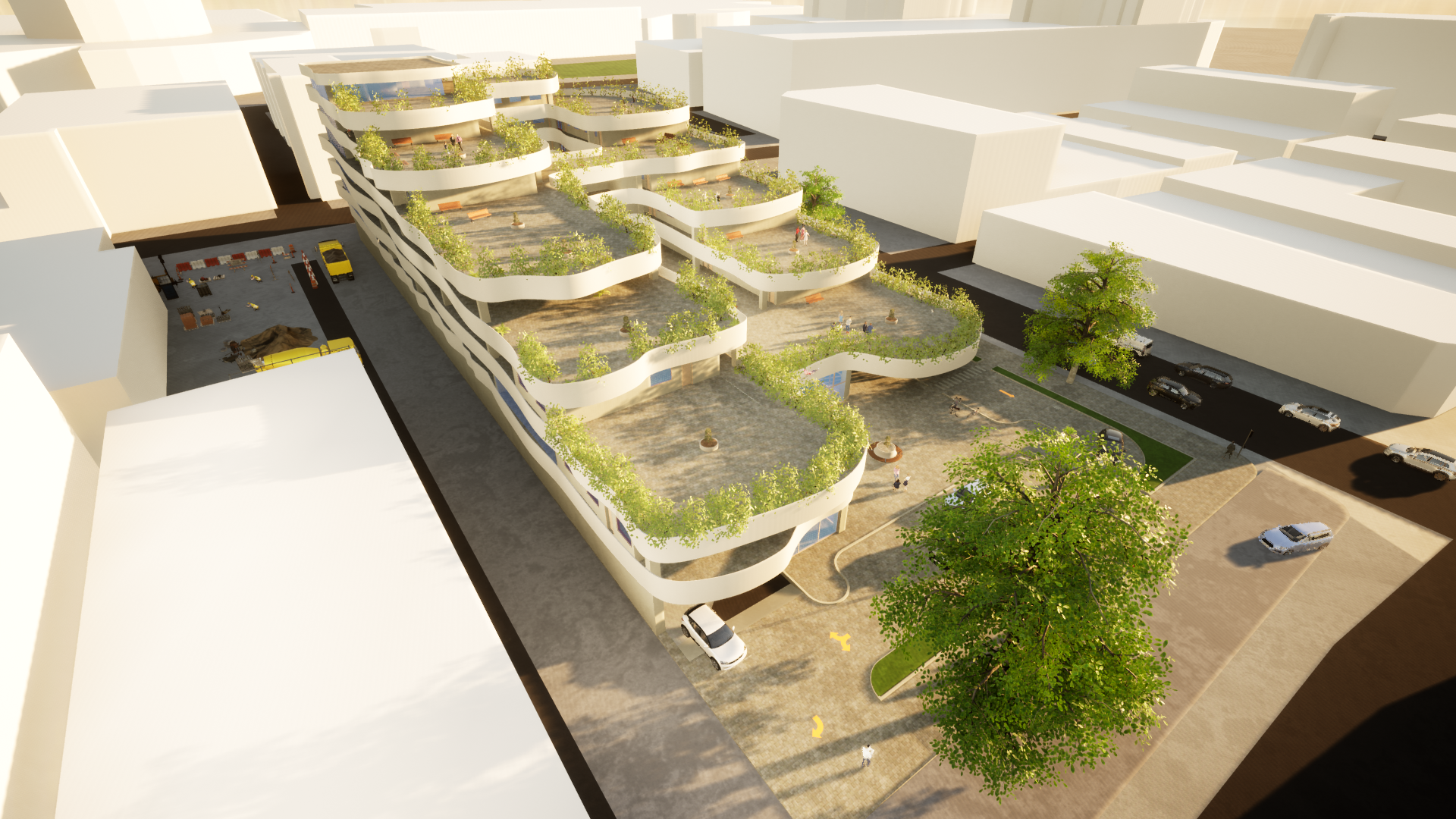

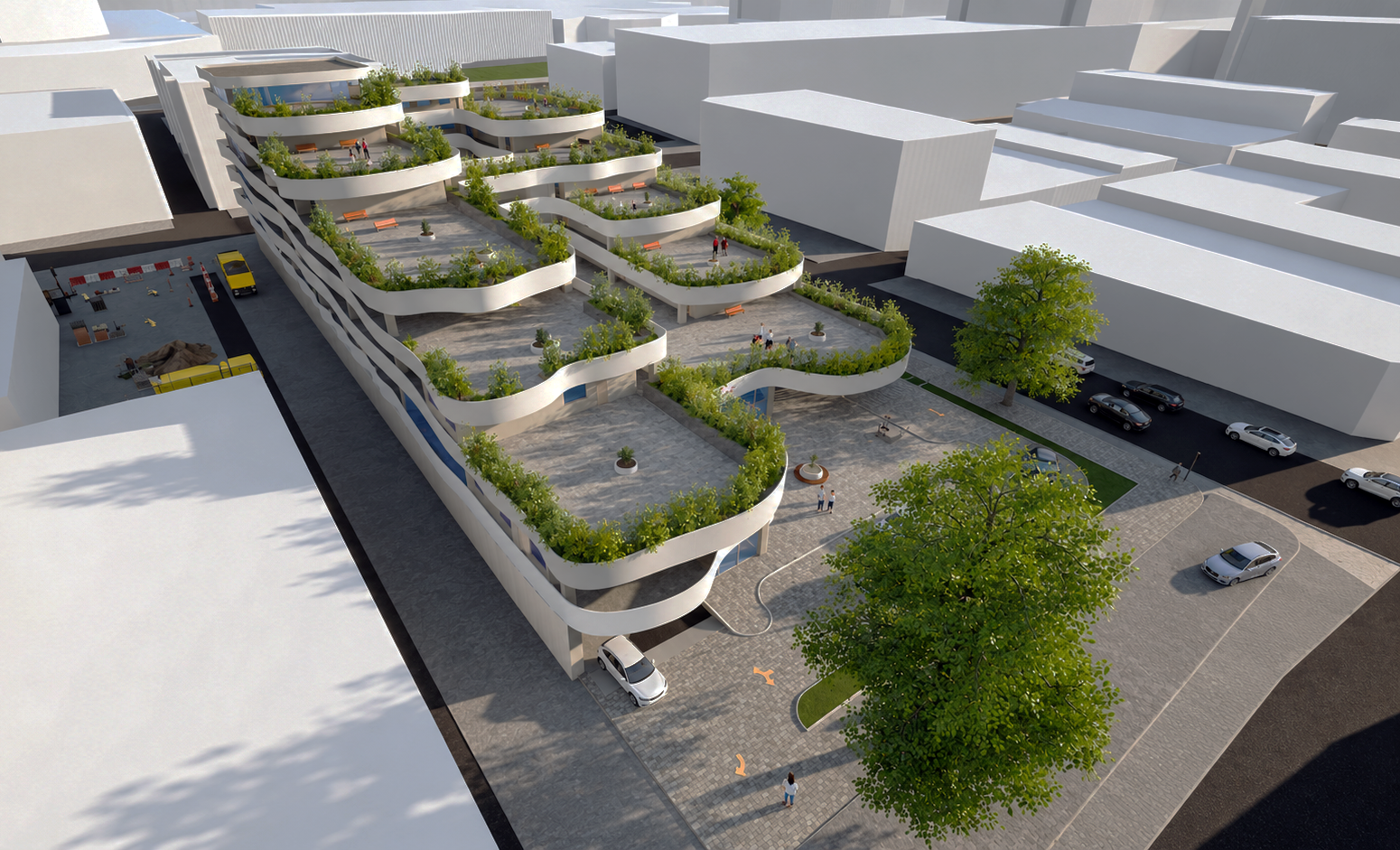

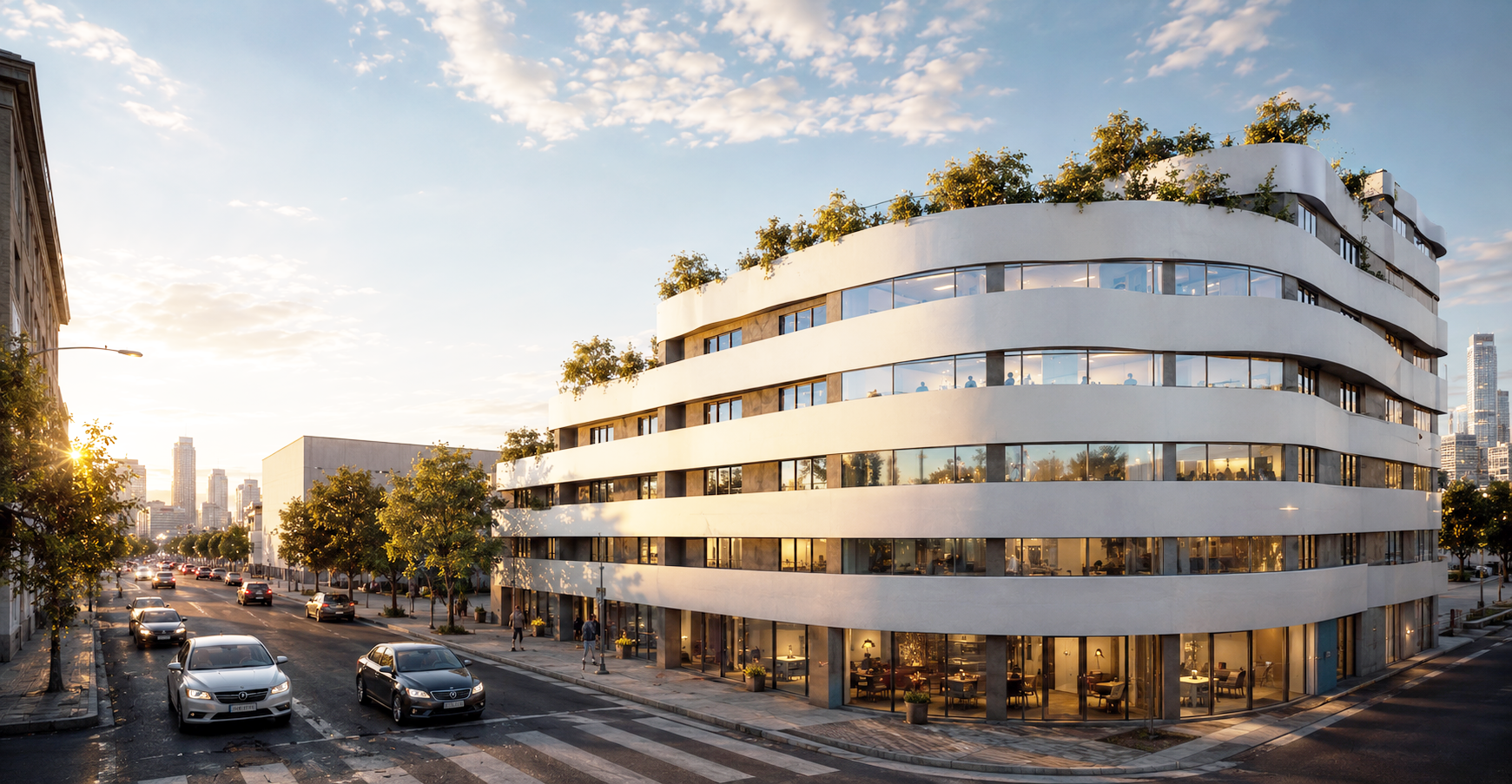

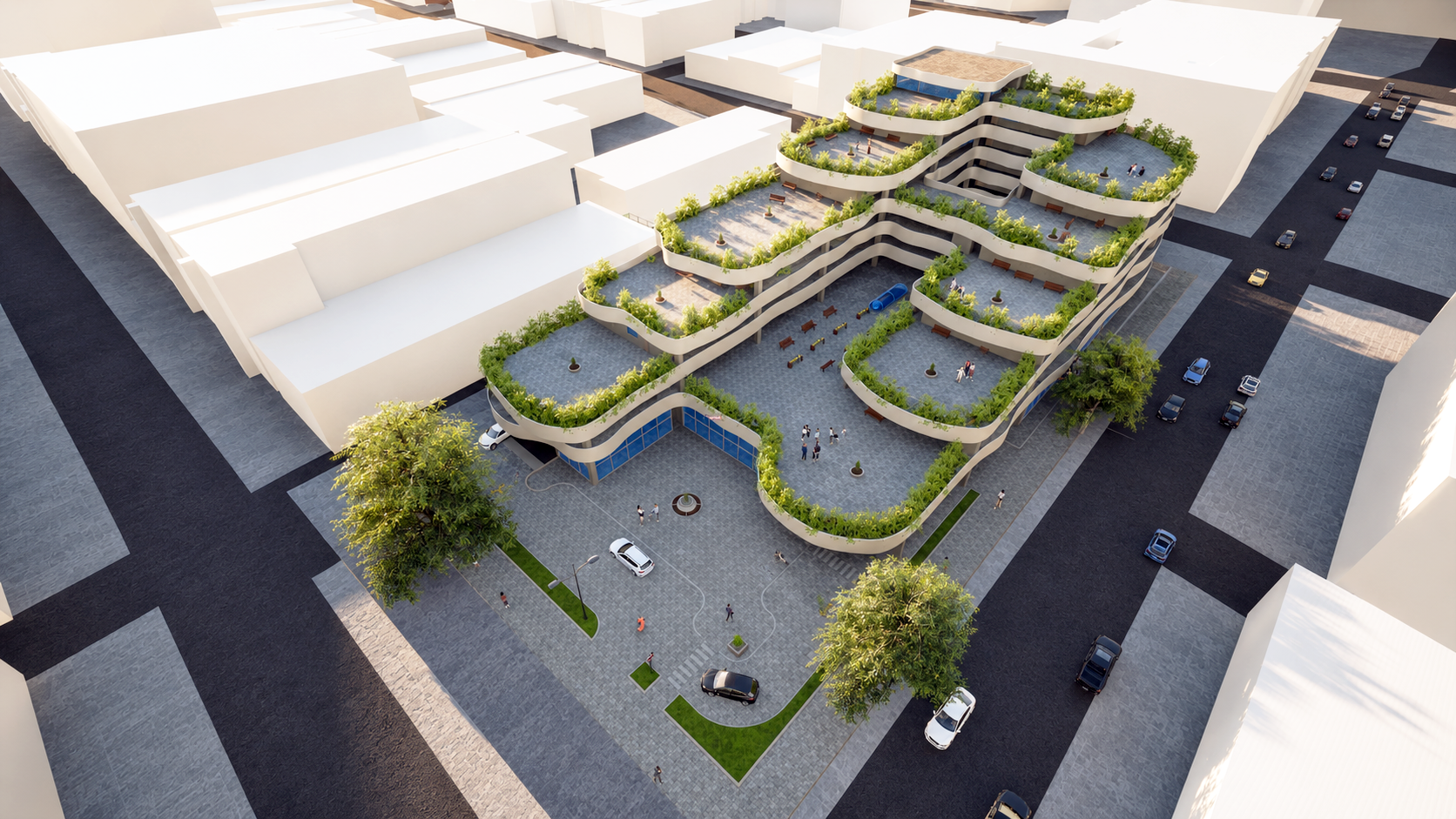

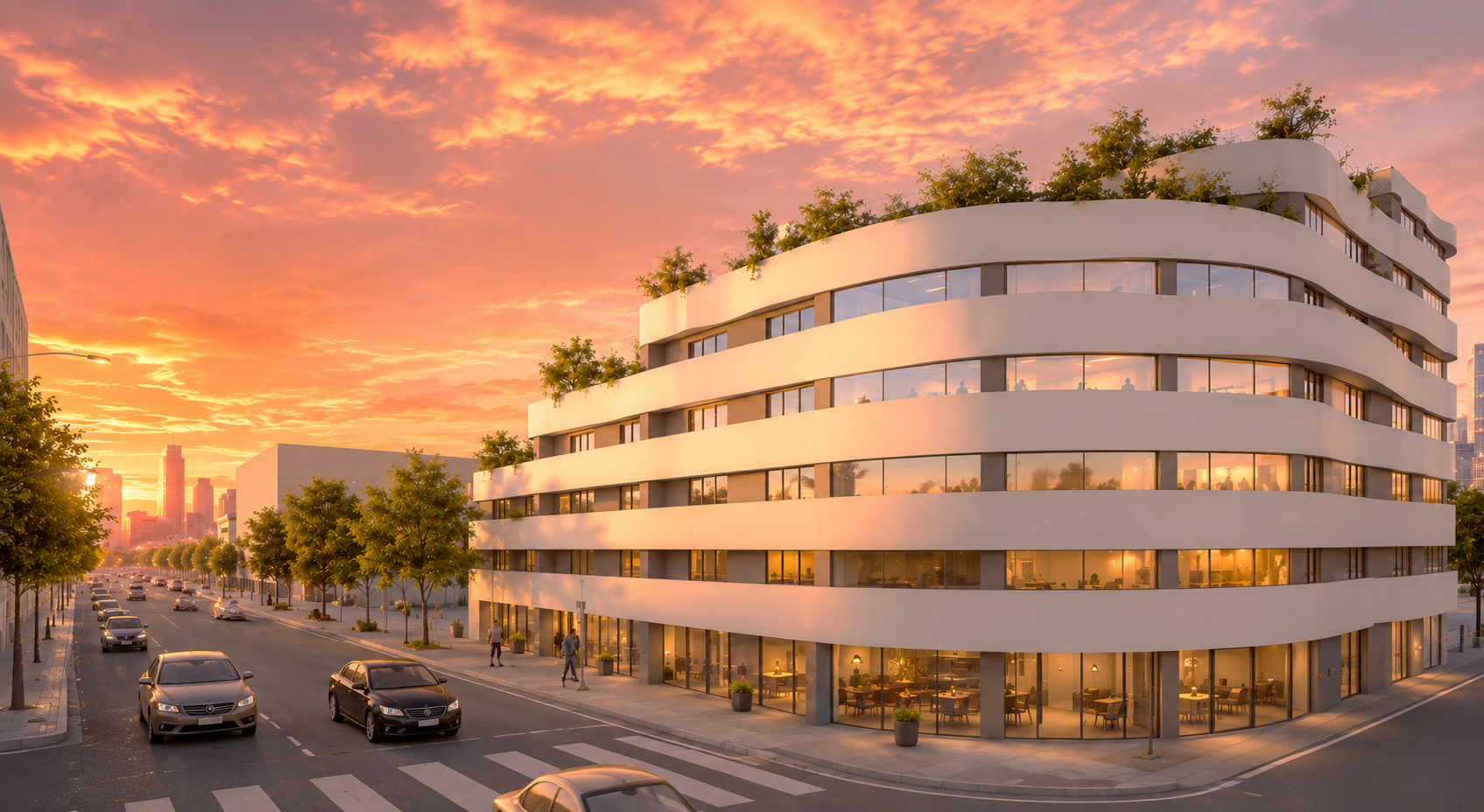

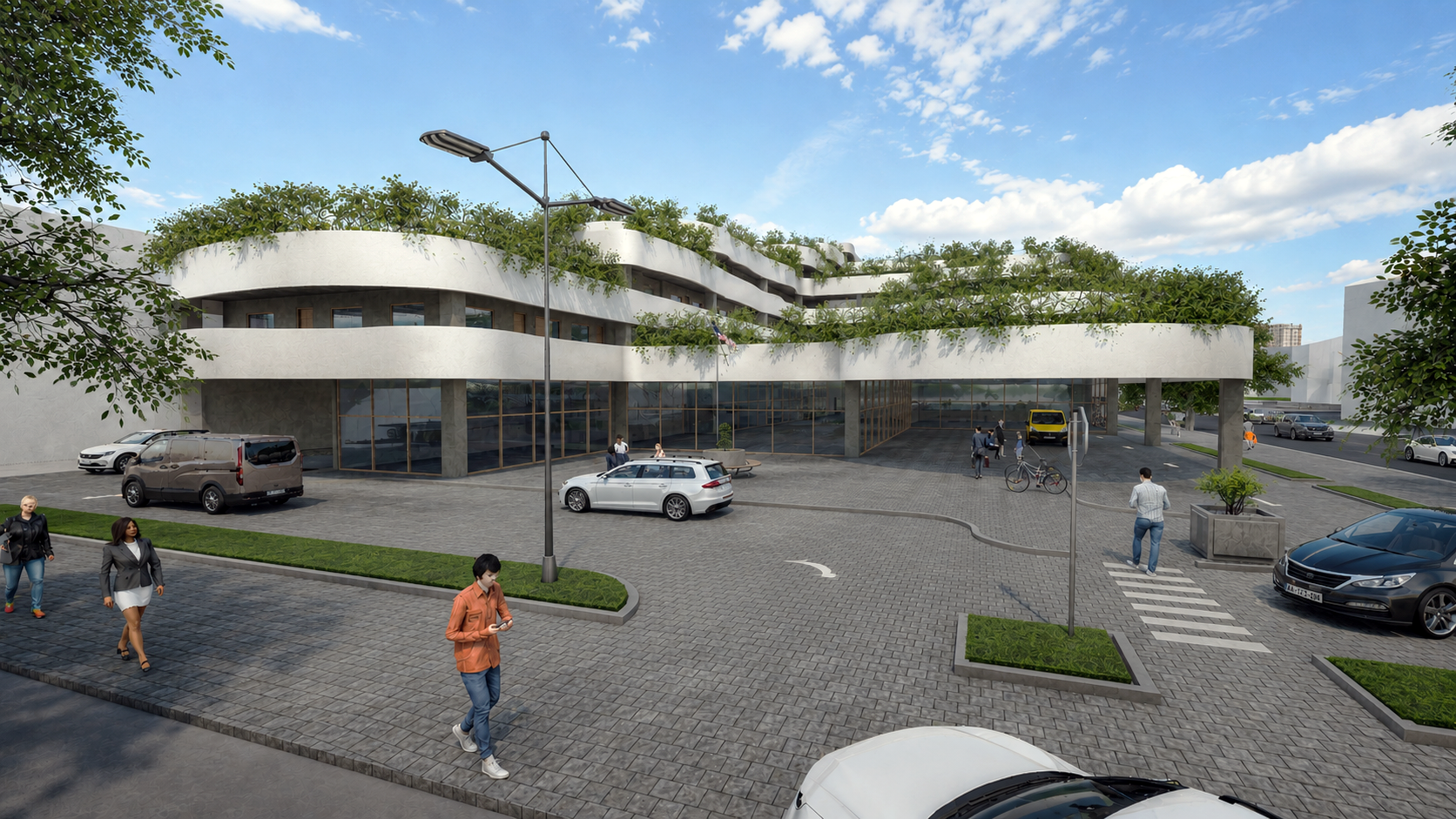

The task was to design a brand-new, 75-foot-tall, mixed-use midrise residential building for senior housing. The project site is located at 520 Pico Blvd, Los Angeles, CA, on the corner of Pico Blvd and South Flower Street, one block away from the Los Angeles Convention Center and near the Pico Metro Blue Line station. The site area is 46,269 sq. ft., or approximately 1.06 acres (since 1 acre = 43,560 sq. ft.).
The project represents a thoughtful housing type that responds to local lifestyles and the unique concerns of the greater metropolitan Los Angeles area. The dwelling spaces emphasize human scale, compositional coherence, and contextual compatibility. This project demonstrates that medium-density housing can be closely integrated with urban issues derived from site contours, neighborhood amenities, building orientation, prevailing movement patterns, and a desire for natural light, ventilation, and accessibility.

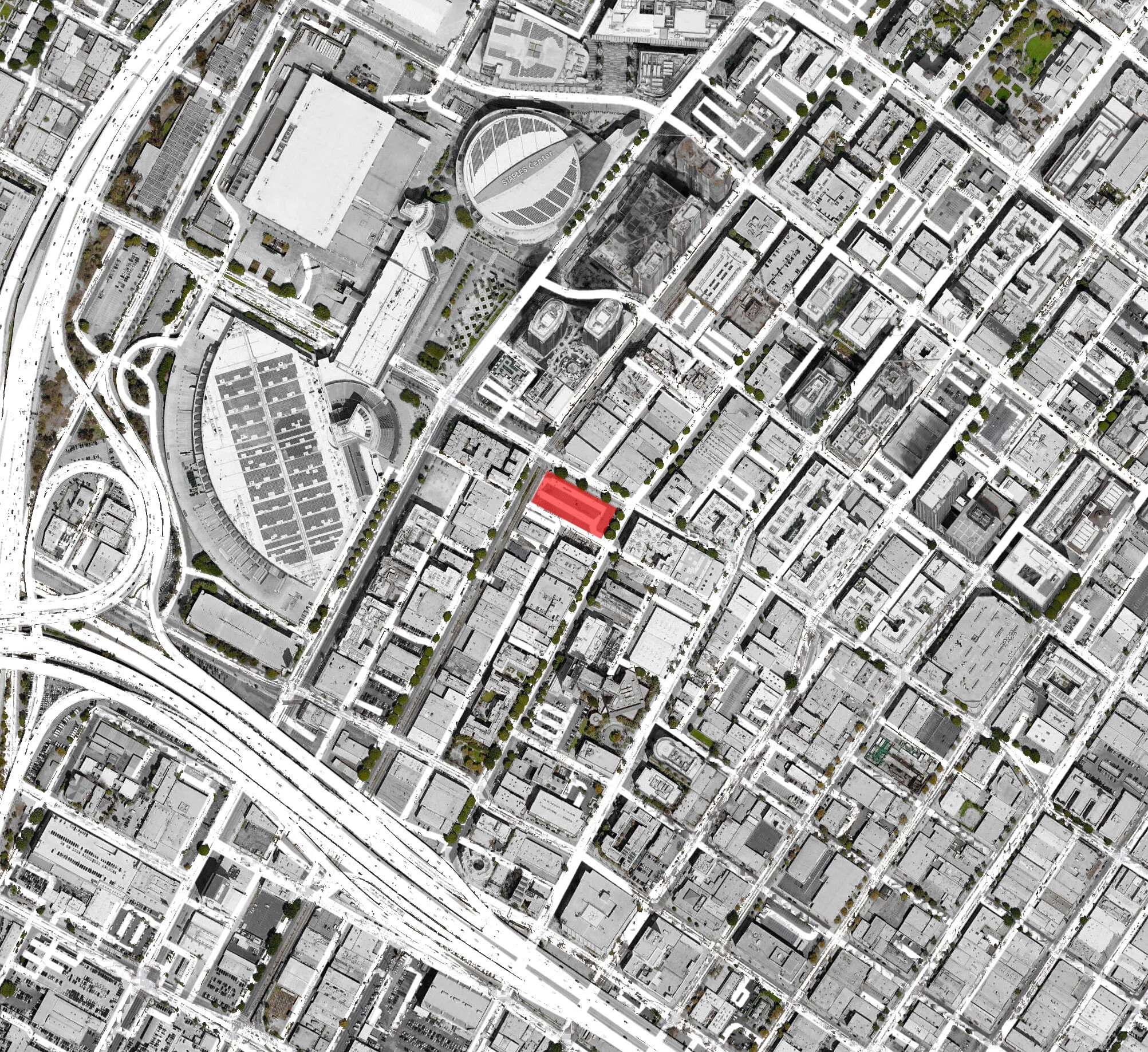

520 Pico Blvd, Los Angeles, CA.
WATCH THE PRESENTATION

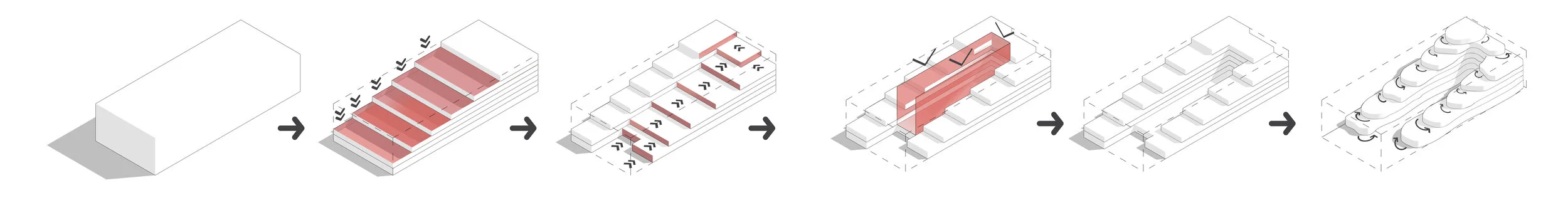

Conceptual Diagram
The concept creates visual connections between the residential volume and the street, It also provides privacy and limits visual access between units, maximizes connections between interior and exterior spaces.

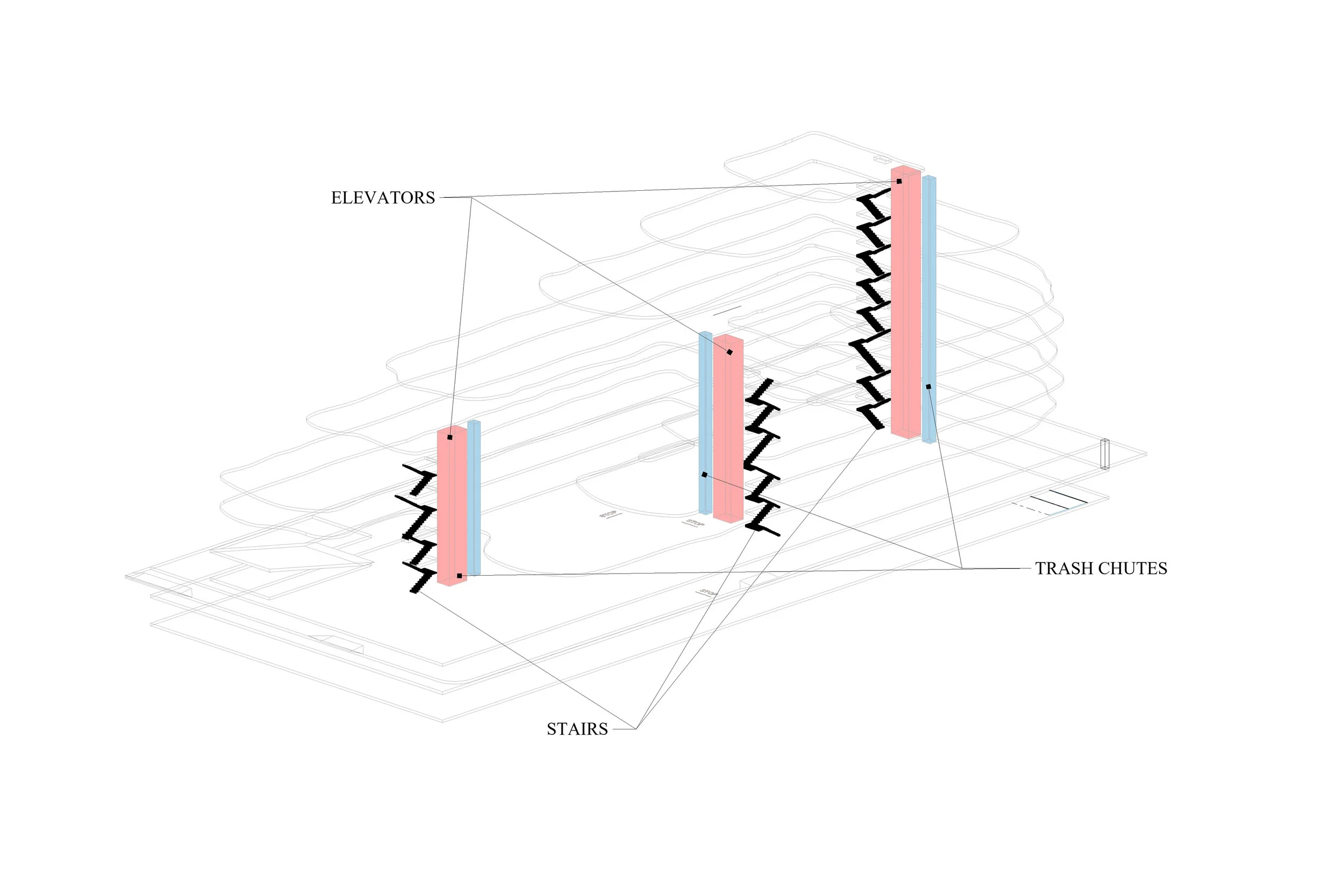

Circulation Diagram
The entry lobby has two elevators with connections to shared facilities and connected to the street with full security screening. There are 2 offices for administration and manager with a visual connection to the entry lobby and a counter opening to general circulation.

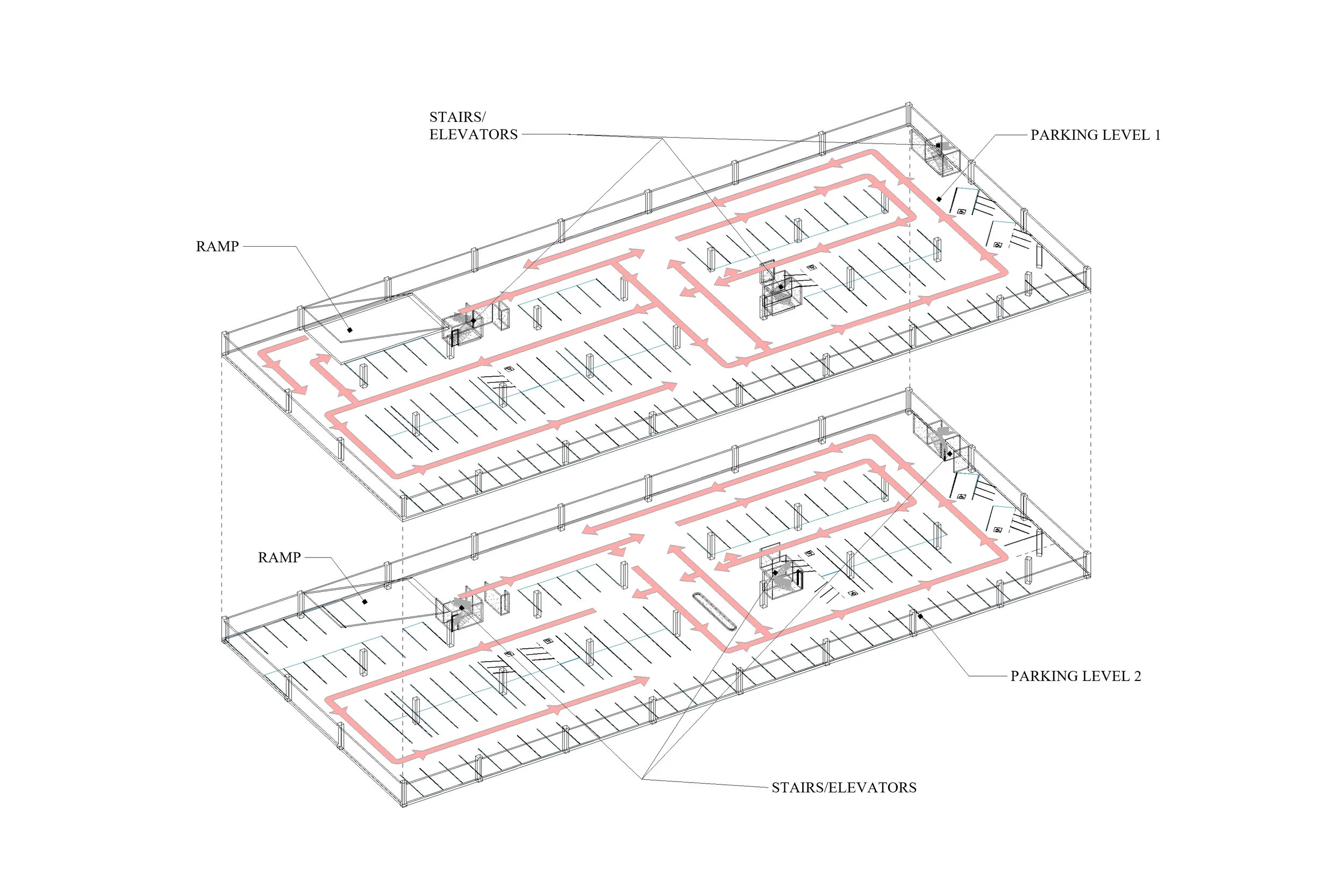

Parking Circulation diagram
1 parking spaces for each living units = 53 spaces. 10 accessible parking spaces for senior housing. 2 accessible parking space for retail space. Total Parking 200 parking spaces including accessible spaces. 90 degrees parking 9’-0” width by 18’-0” length.

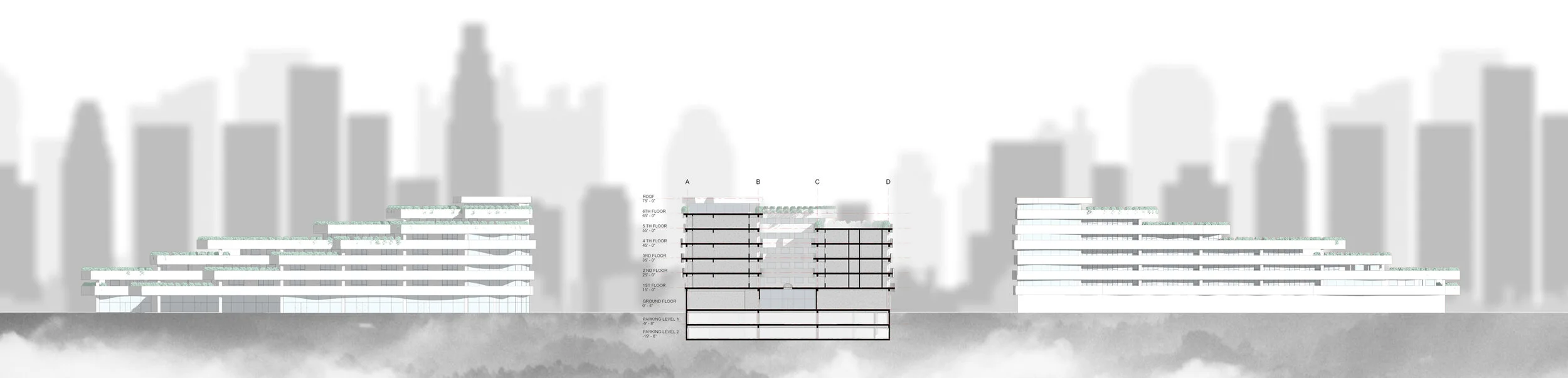

NORTH ELEVATION, SOUTH ELEVATION, AND SECTION 1
WEST ELEVATION, EAST ELEVATION AND SECTION 2

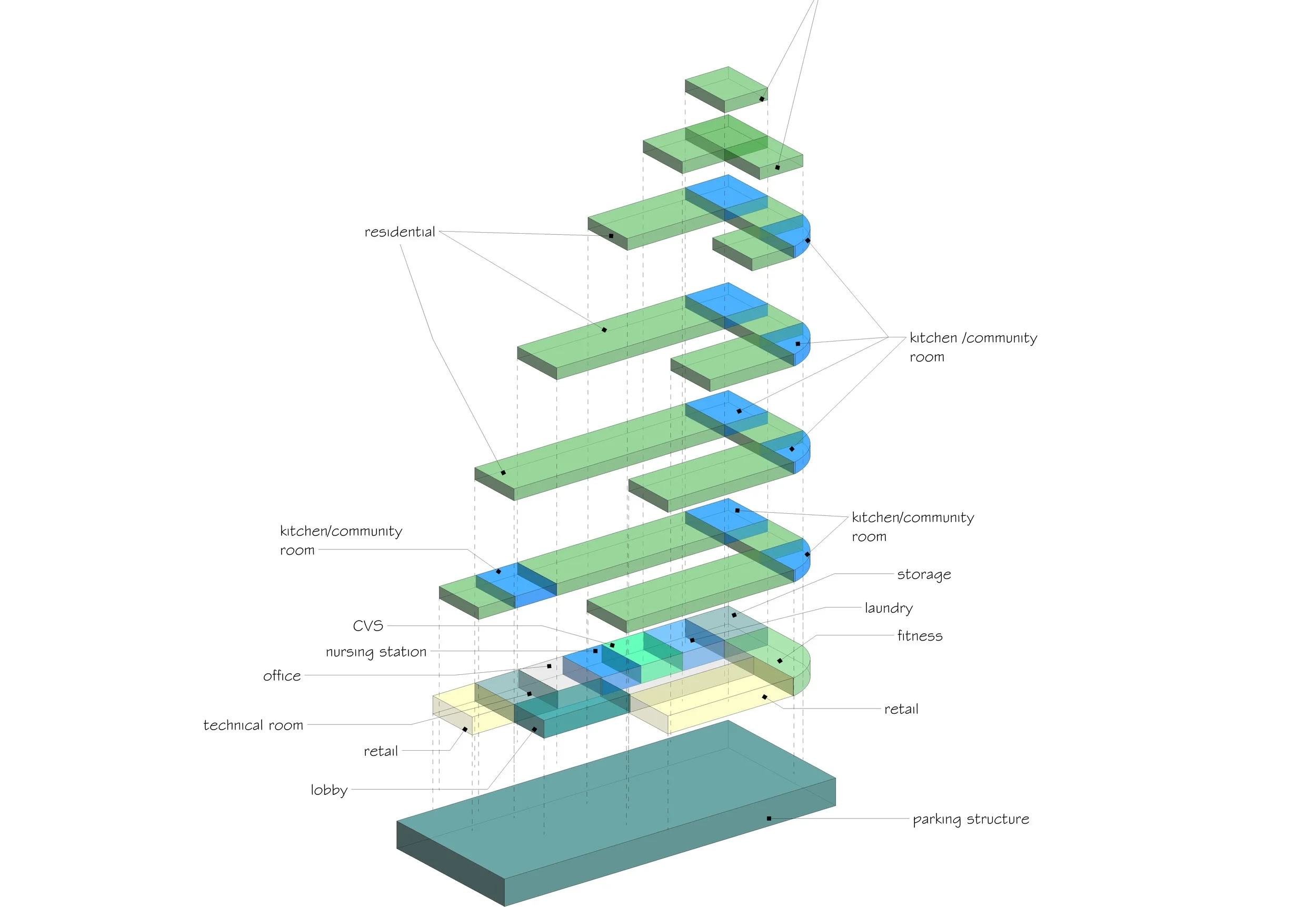

PROGRAM DIAGRAM

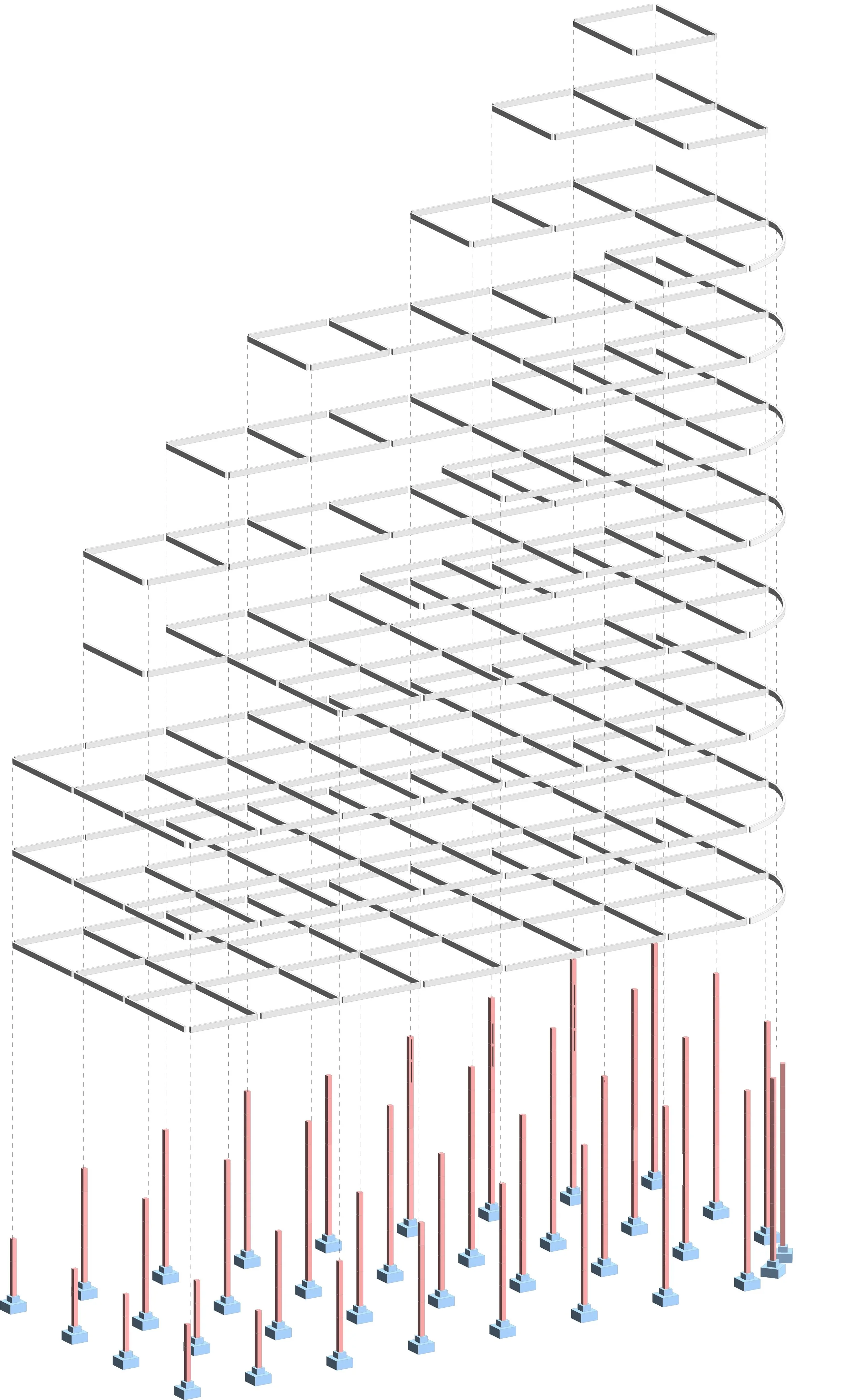

STRUCTURAL DIAGRAM
Floor Plans
FIRST FLOOR

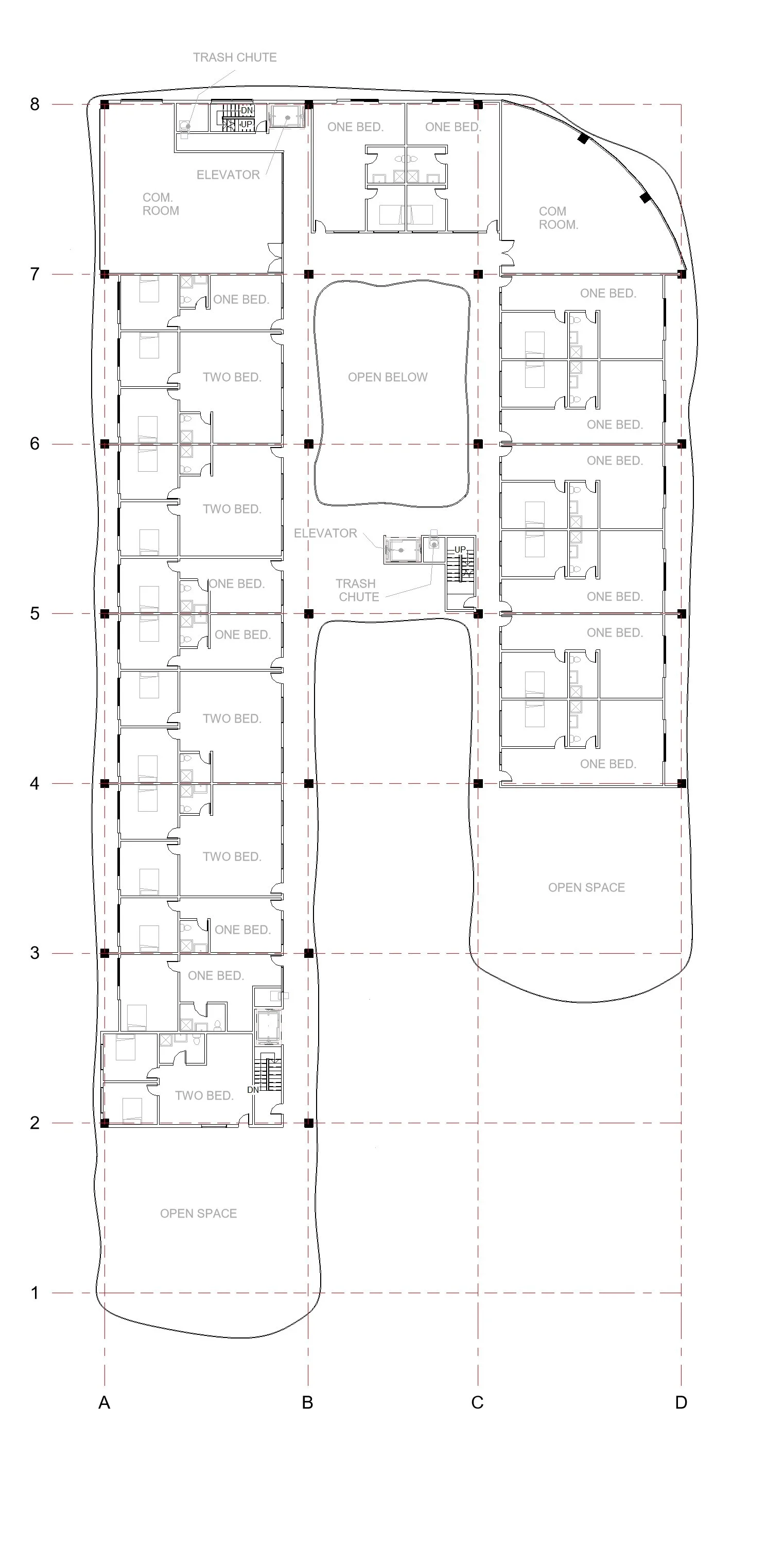

SECOND FLOOR

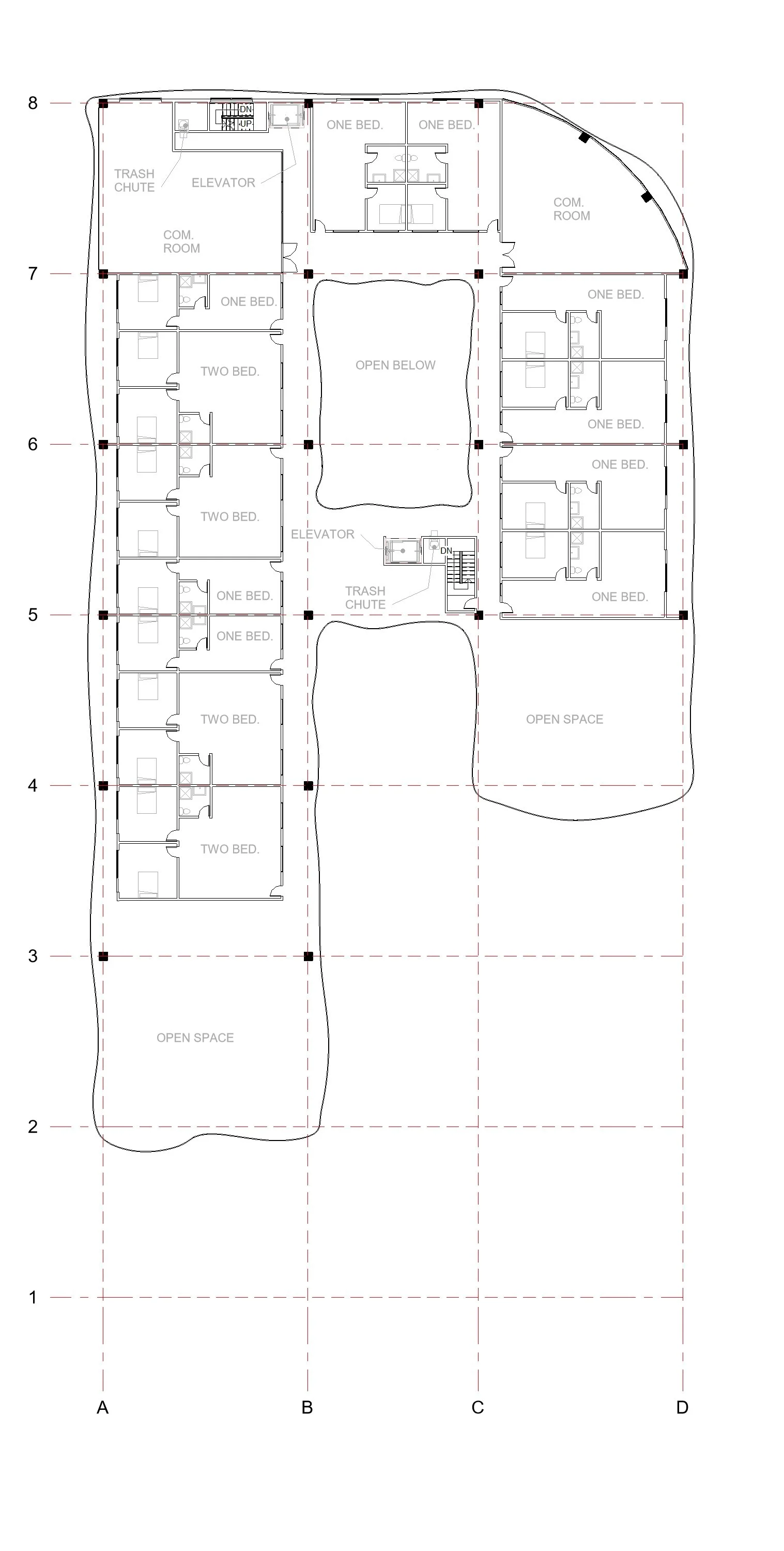

THIRD FLOOR
FOURTH FLOOR

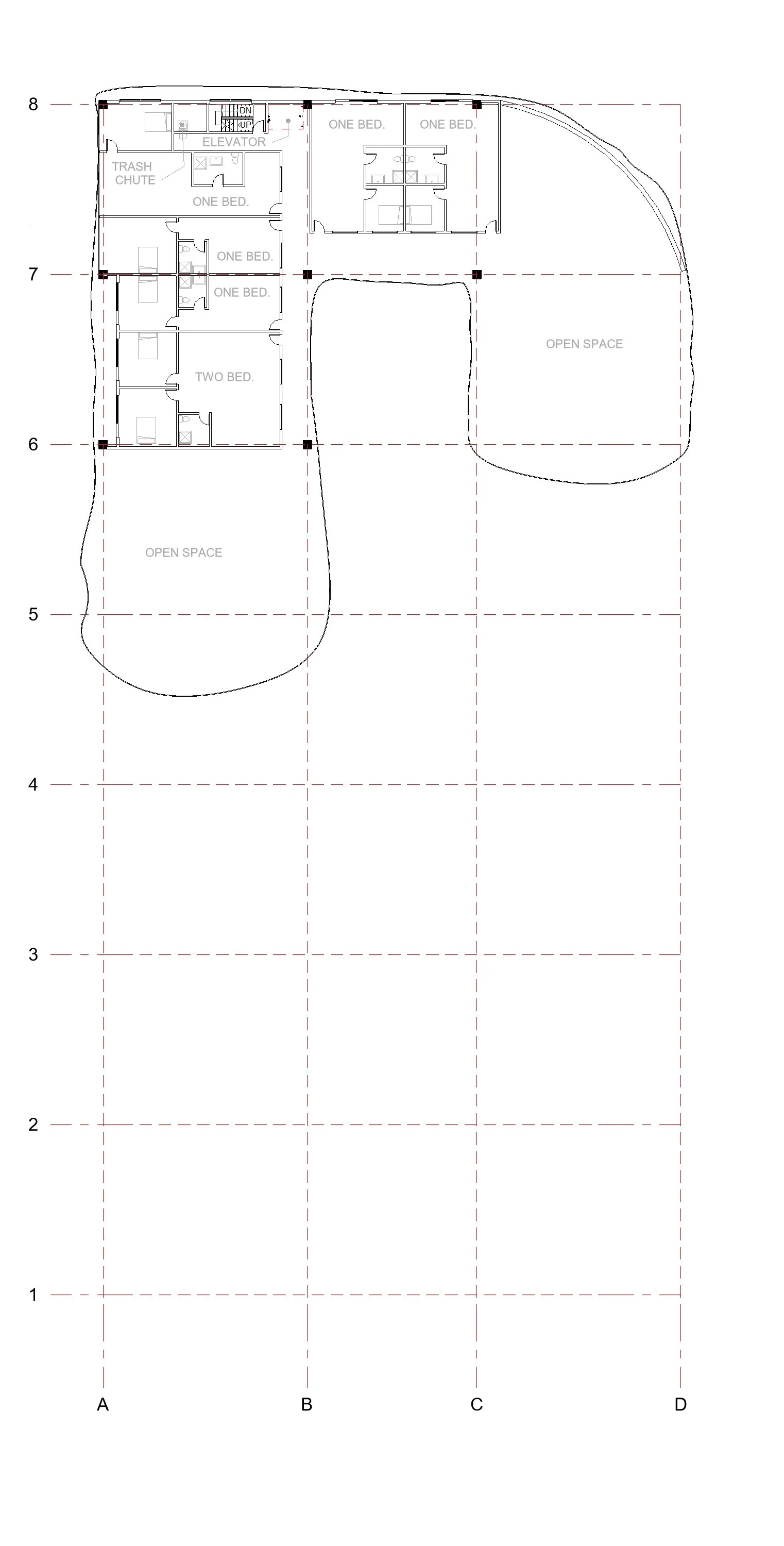

FIFTH FLOOR

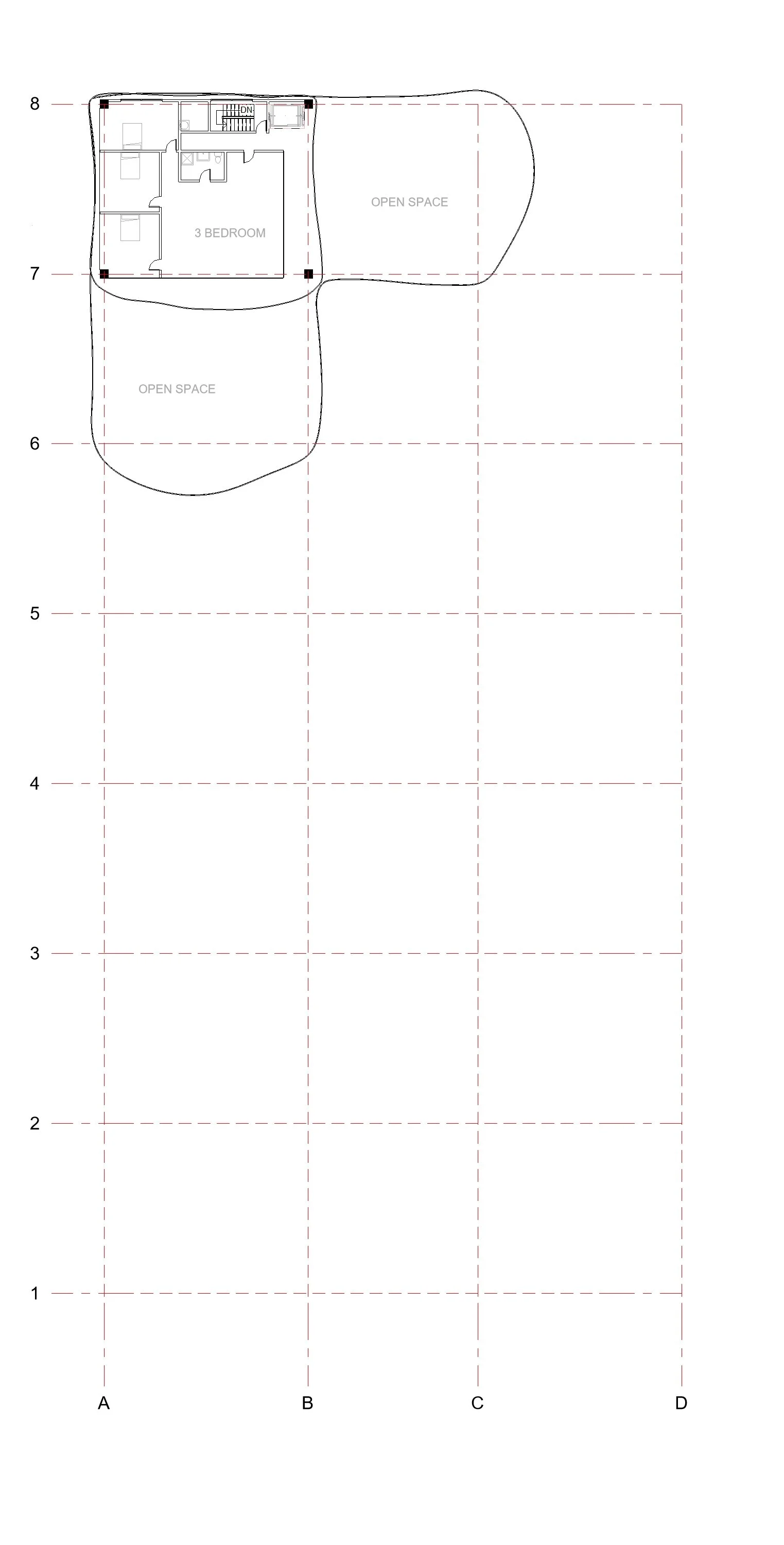

SIXTH FLOOR

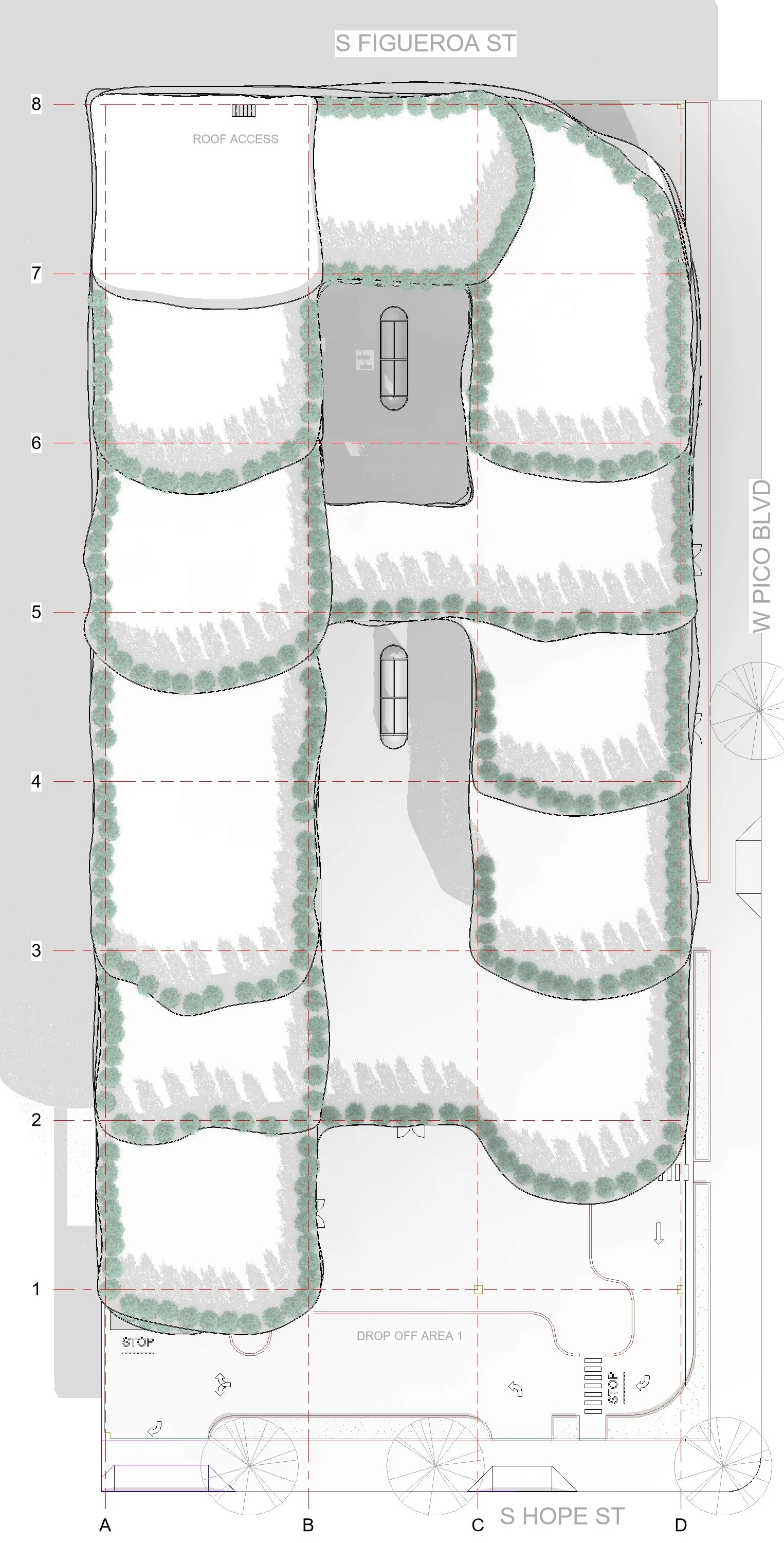

ROOF

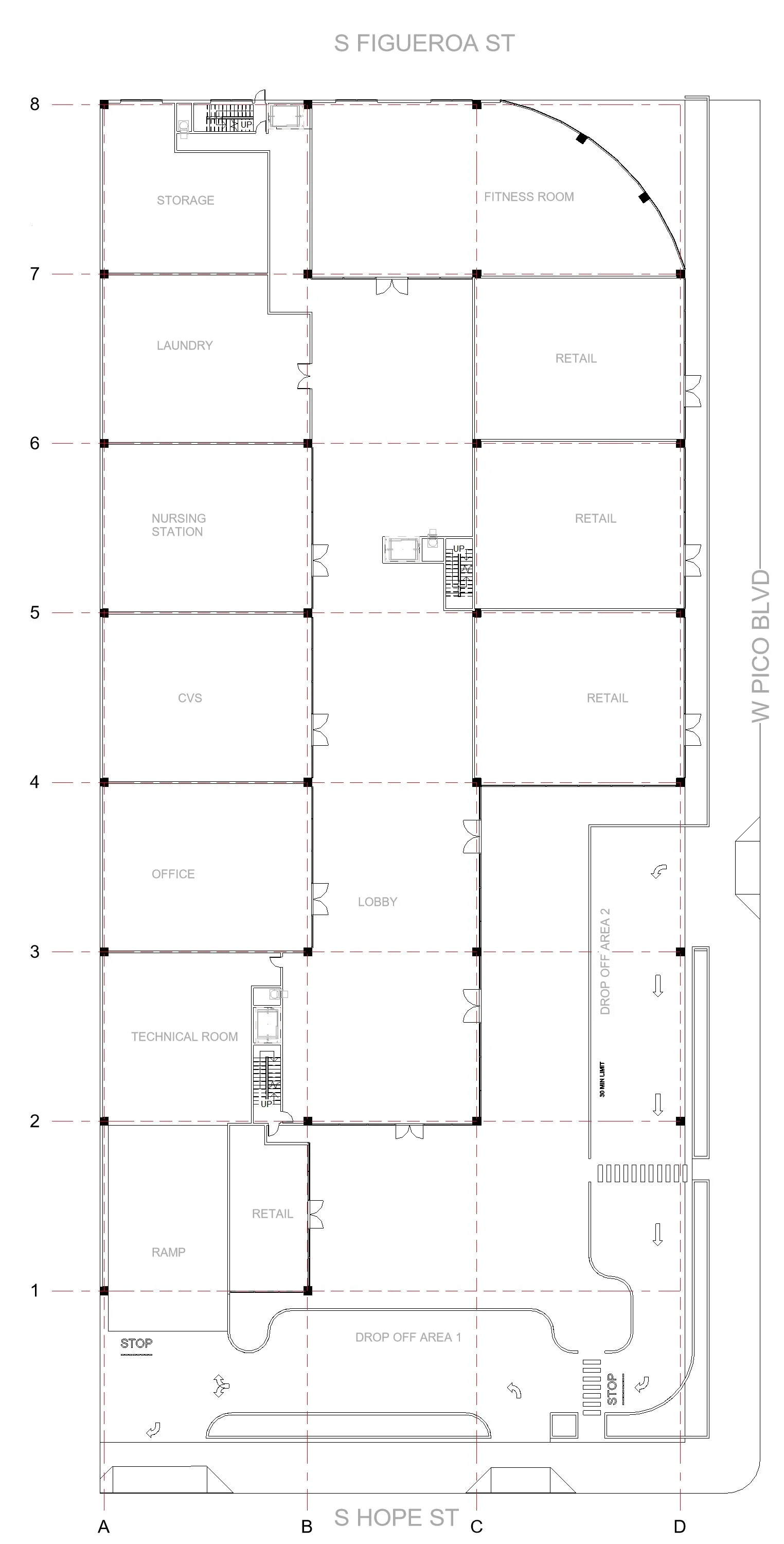

GROUND LEVEL

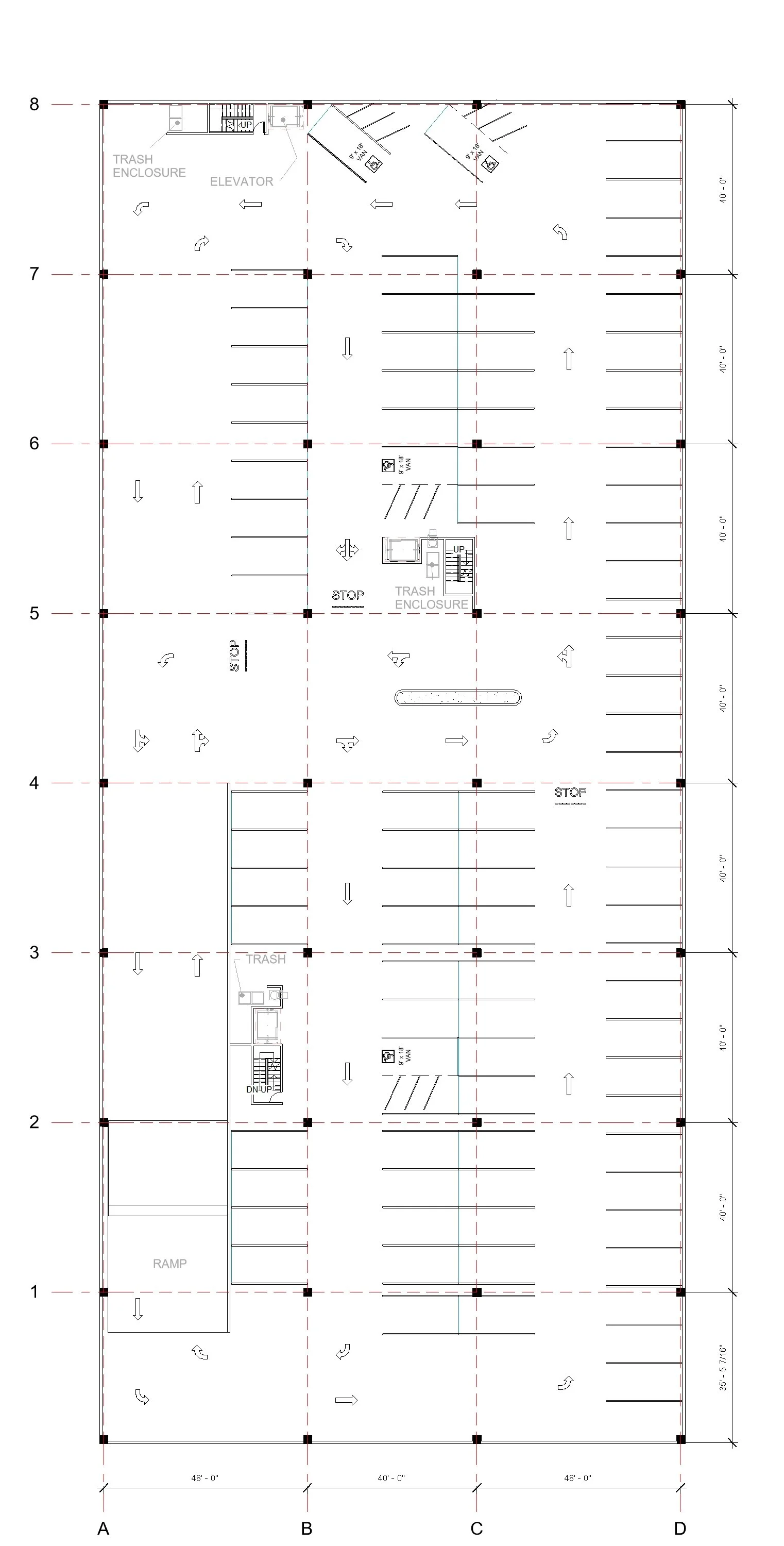

PARKING LEVEL 1

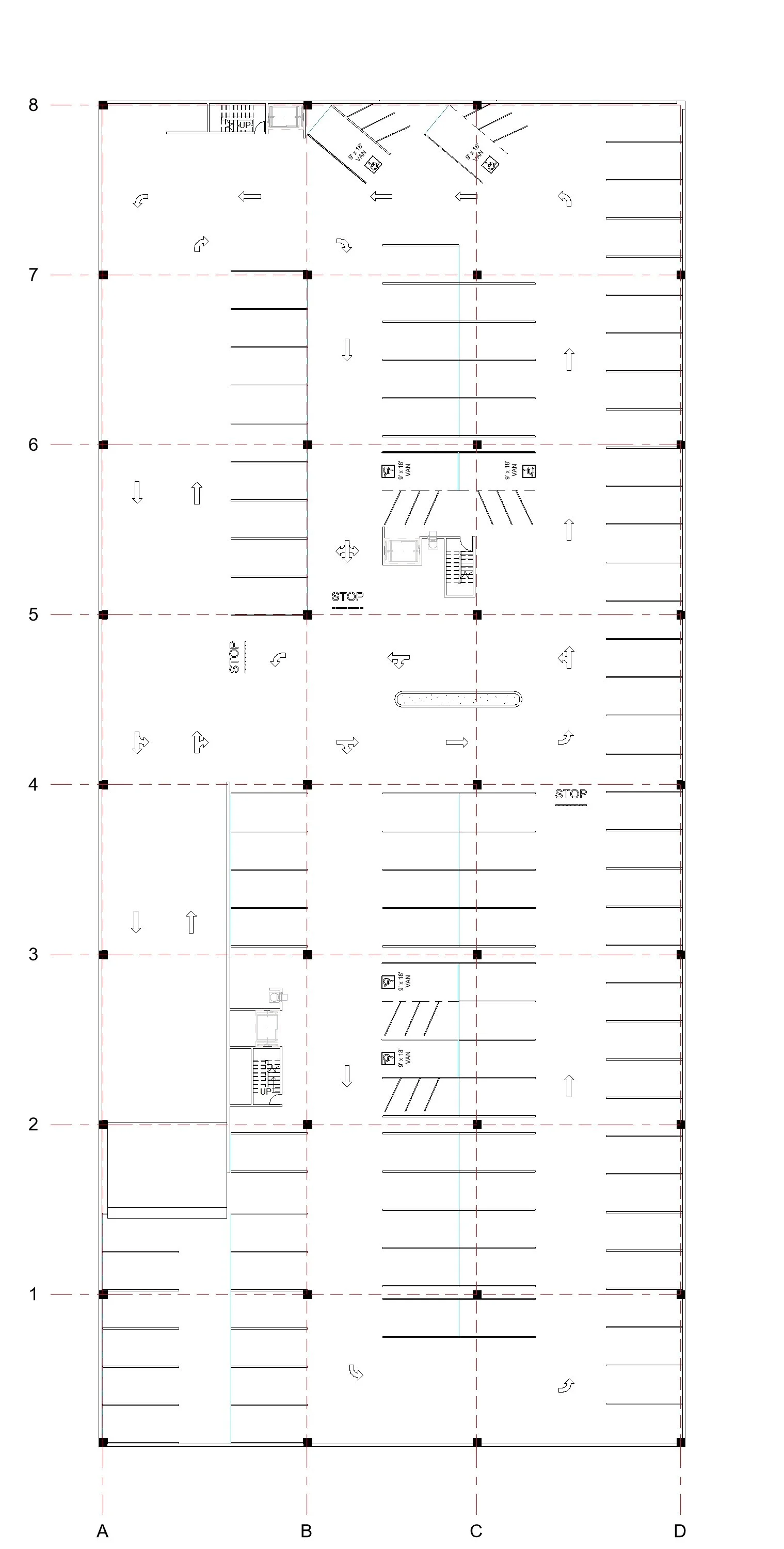

PARKING LEVEL 2

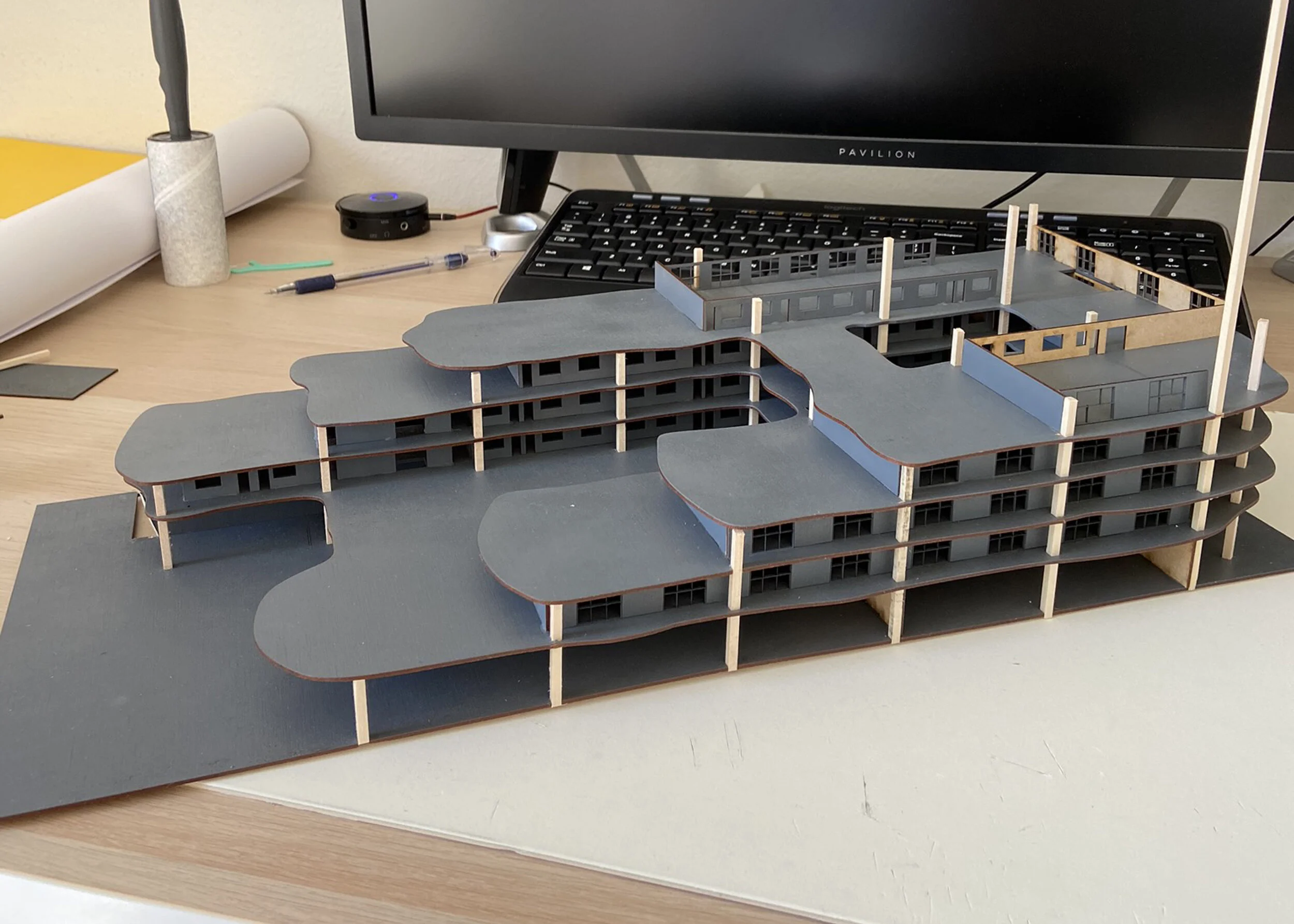

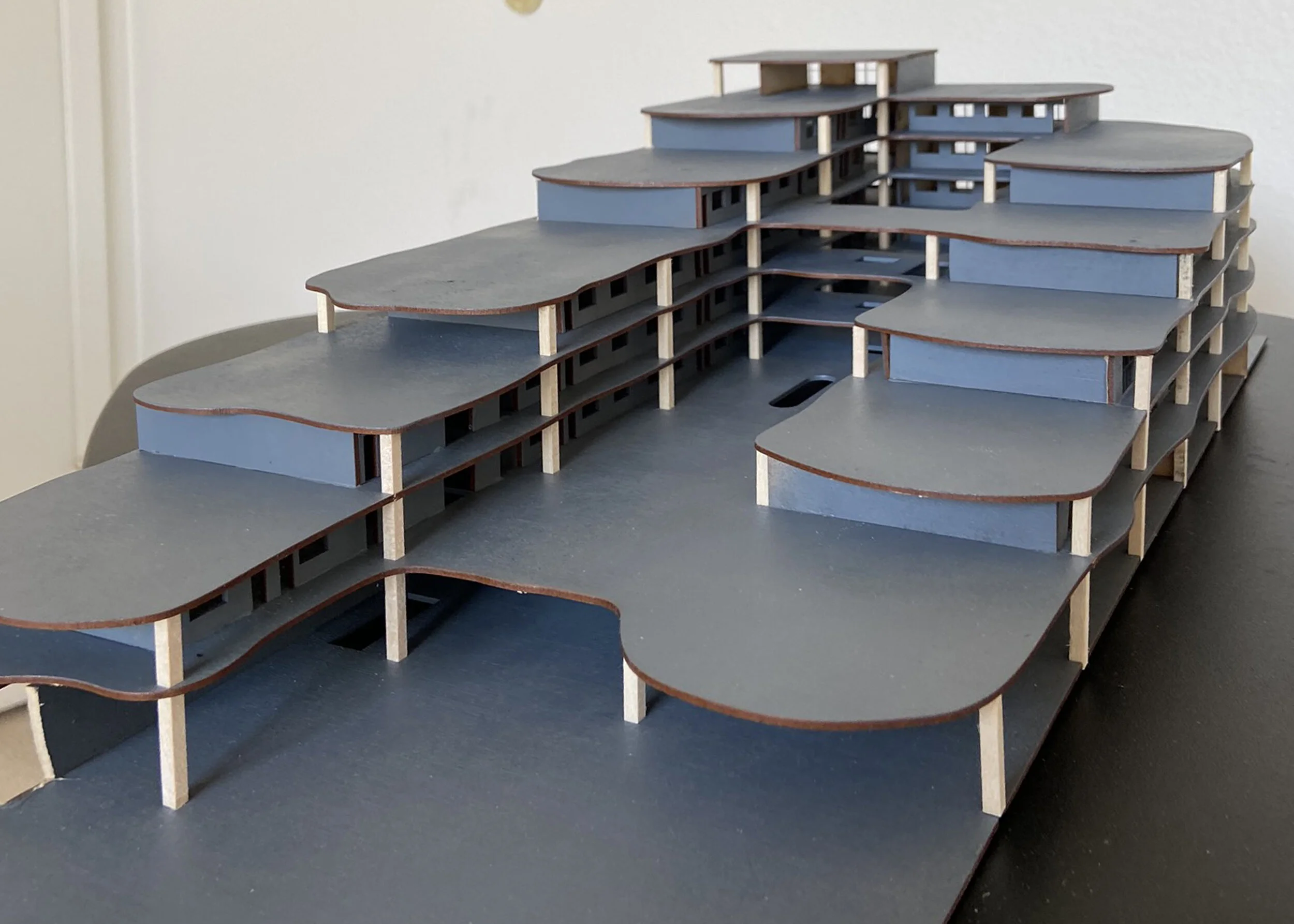

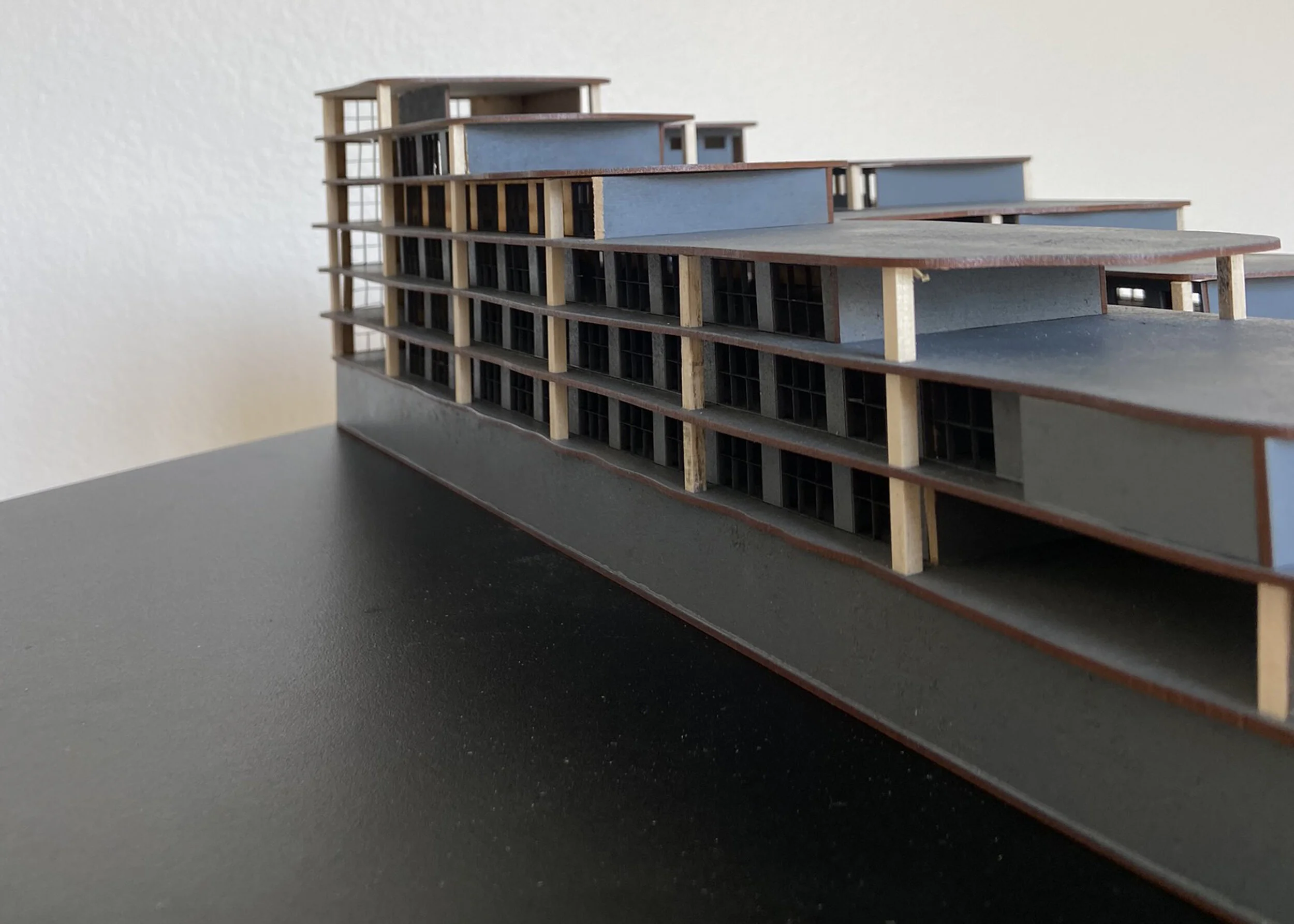

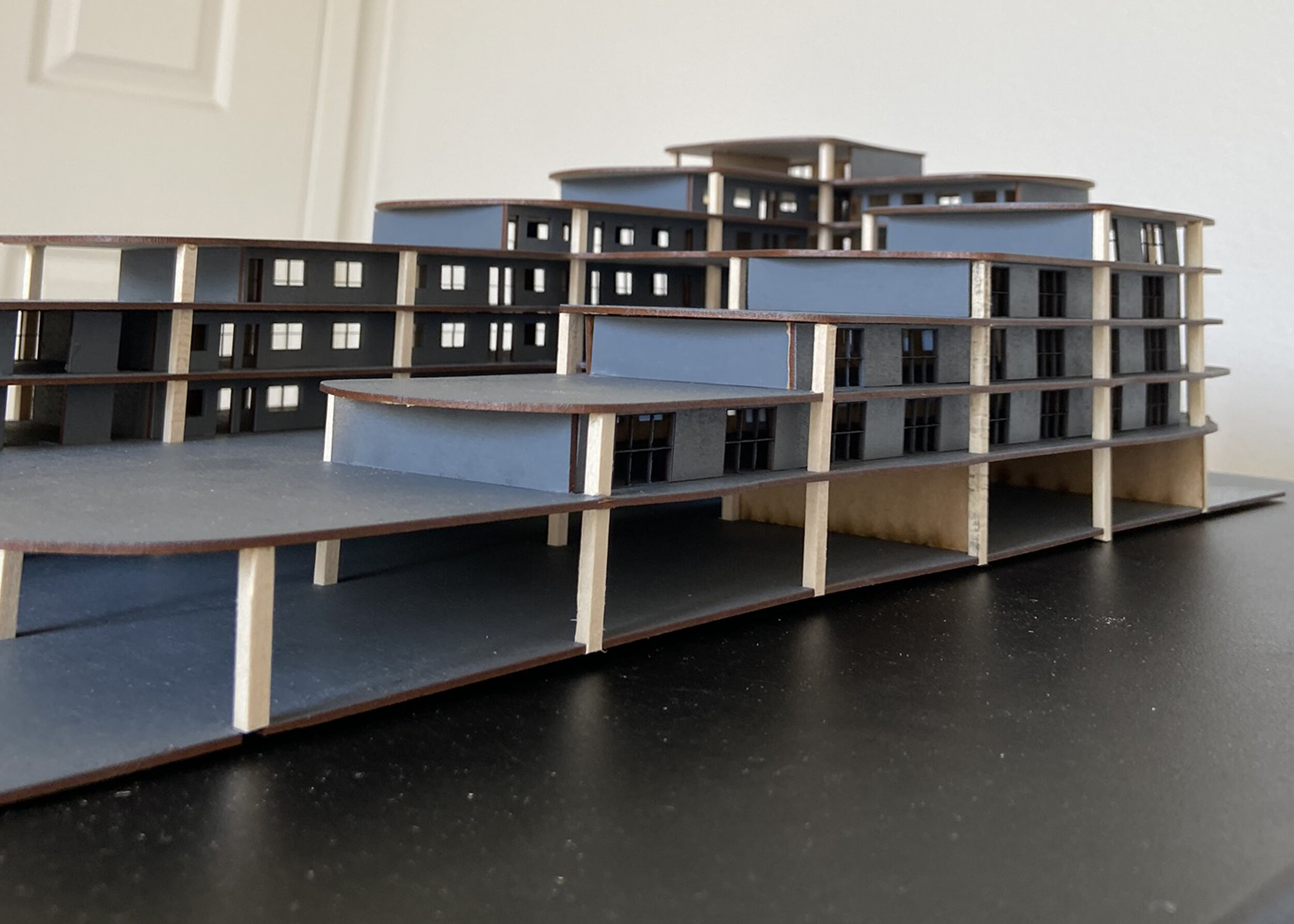

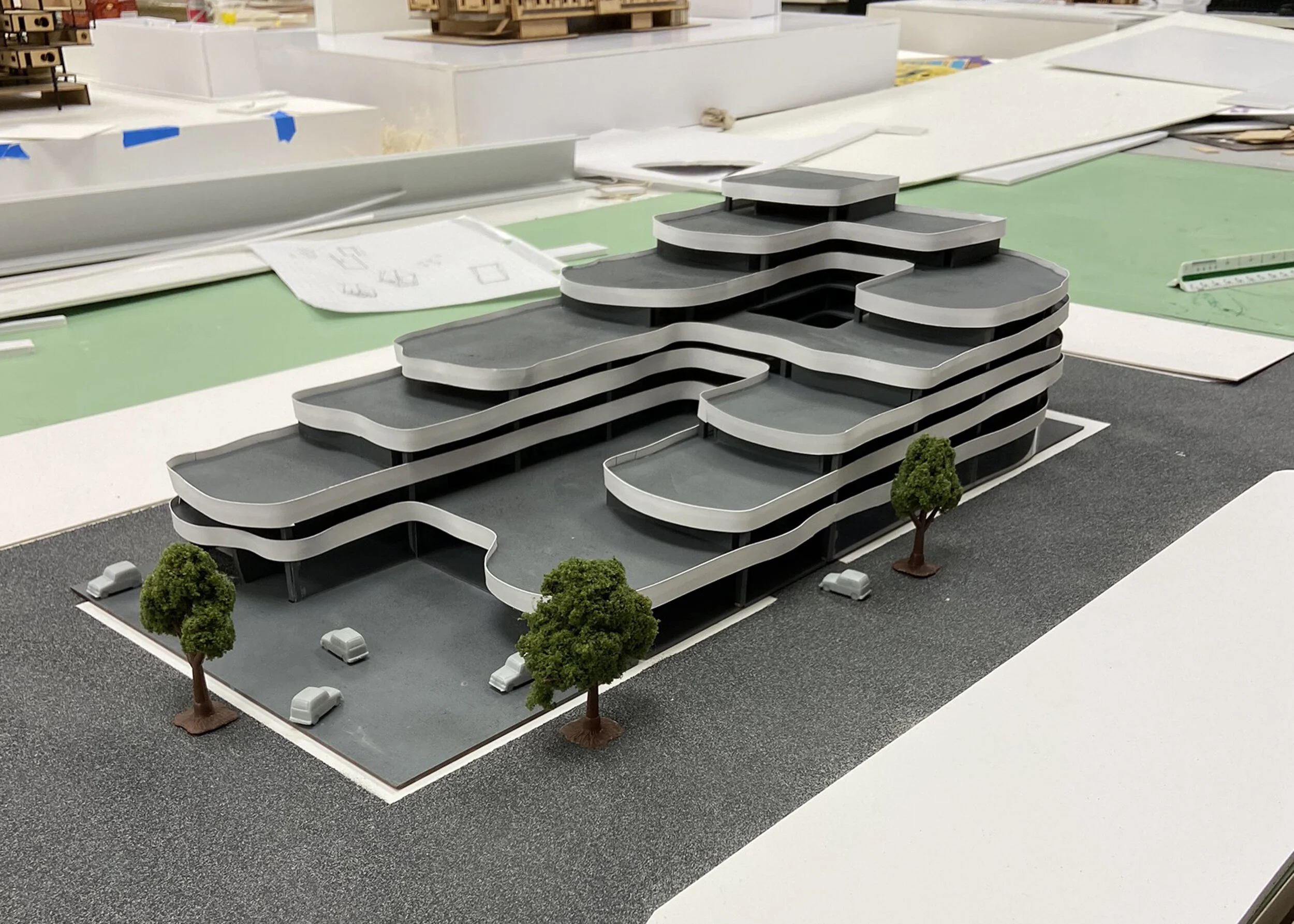

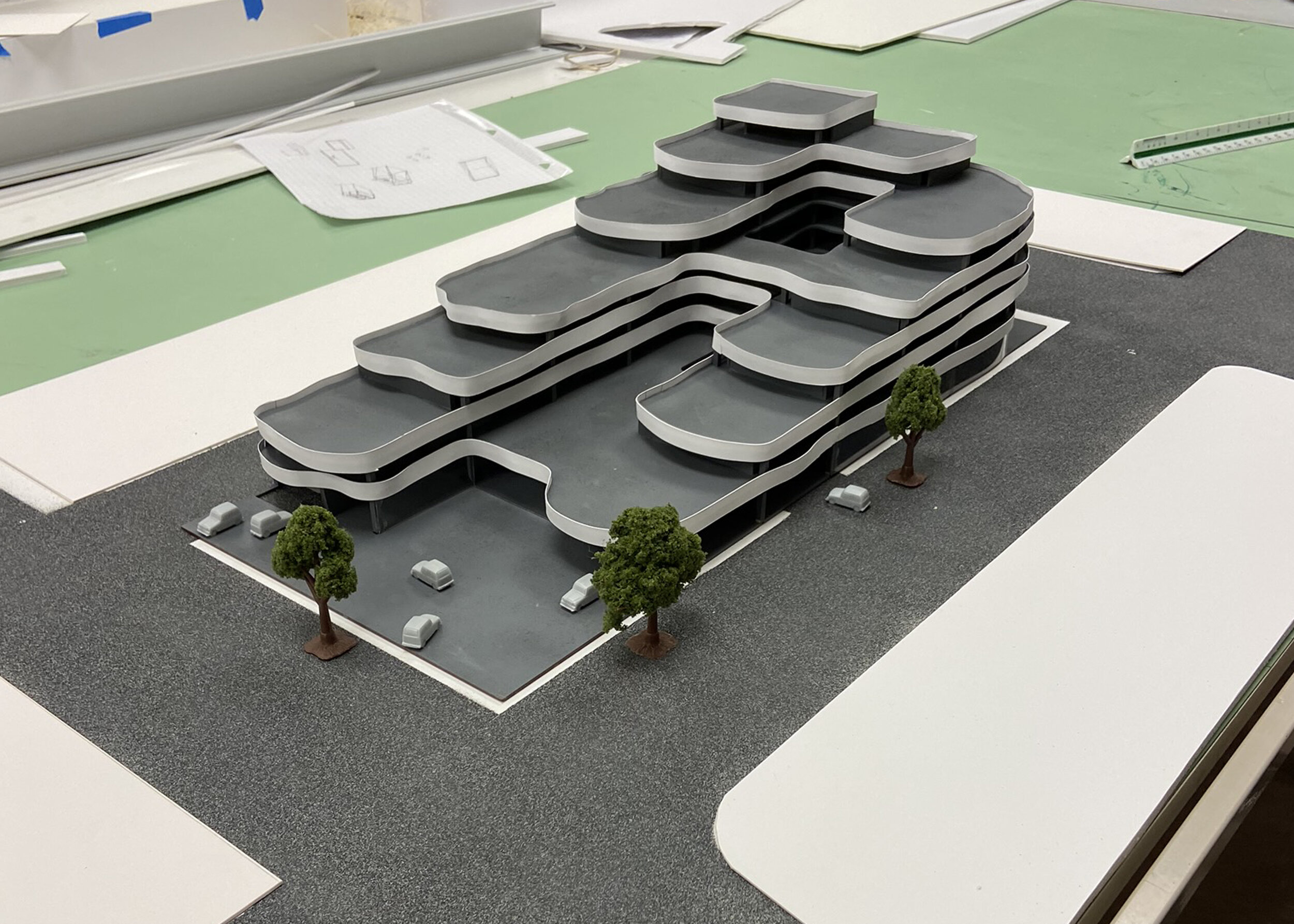

The Physical Model
